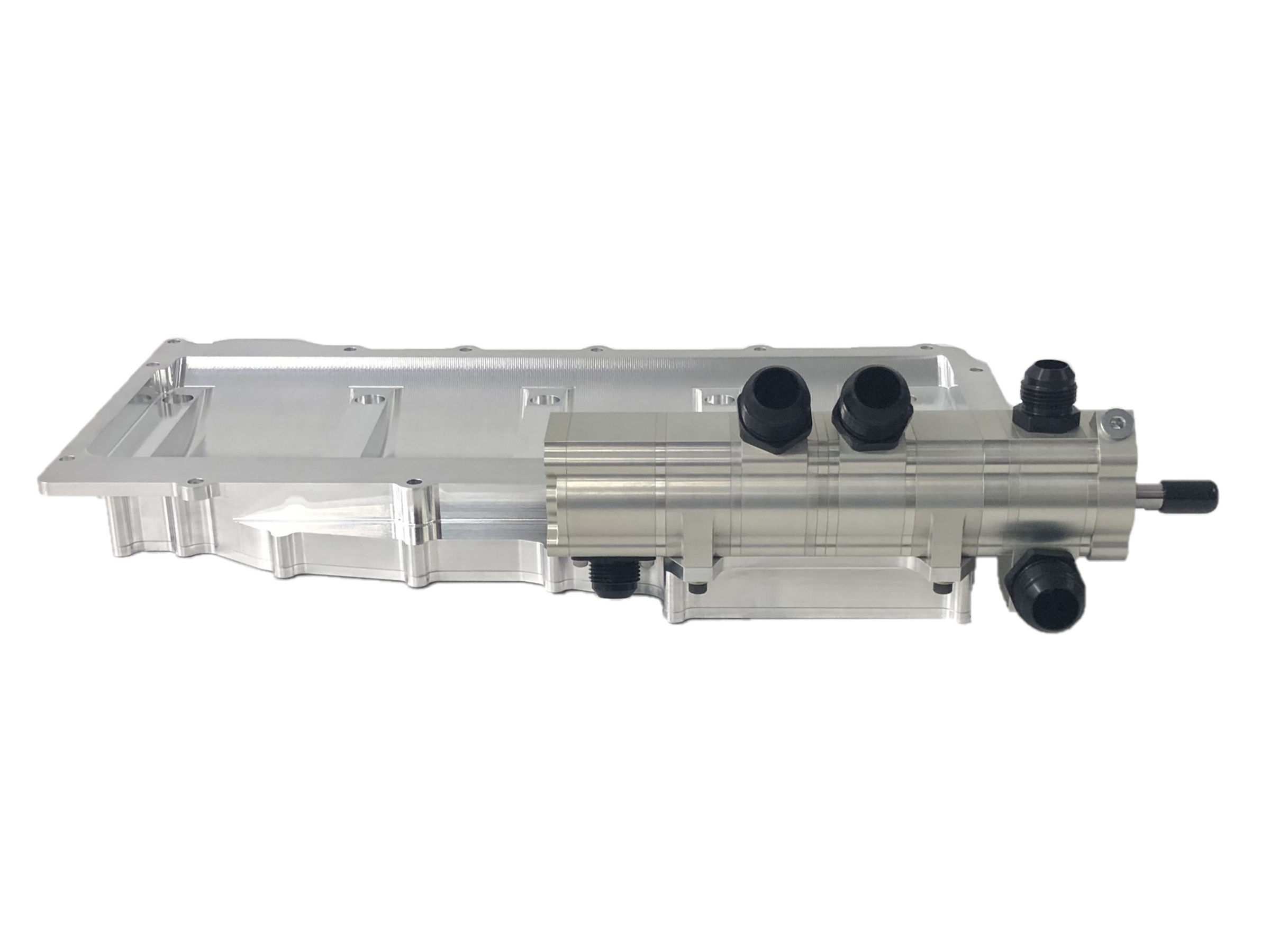

LS Race Y-Body, 6-Stage Vacuum Scavenge, Drag Race, Right Side

LS Race Y-Body, 6-Stage Vacuum Scavenge, Drag Race, Right Side

This is a popular dry sump system for GM LS drag racing applications. Using Dailey Engineering signature series billet oil pan and 6-stage oil pump this system was designed to handle high G loads, make high crankcase vacuum and maintain constant oil pressure at high RPMs. This system is the same as the LS Race 5-Stage but with an added vacuum scavenge section to scavenge blow by from the valve covers.



Optional Pressure Gear Sizes: See technical page for more info.

Increased 20%: 1.450"

Standard OEM: 1.250"

Reduced: -20%1.050"



This system is designed for the GM Y-Body damper configuration and LS2/LS3 wet sump front timing cover. To install this system on an LS7 style OEM "Dry Sump" engine the front timing cover and timing chain will need to be converted to the wet sump configuration. For more information please see our Technical page.



*A dual scavenge return oil tank must be used with this system.



*This system will not fit with the OEM motor mount and the A/C compressor will need to be relocated or removed from the engine.





  • This kit includes the following items

    • Qty 1 - (04-99-2546-2) Dailey Engineering SP Series 6-Stage oil pump, vacuum scavenge section
    • Qty 1 - (20-02-0619-assy) Dailey Engineering billet T6 6061 dry sump oil pan, Race LS right side
    • Qty 1 - (HP-35-115-500) Dailey Engineering HTD oil pump pulley
    • Qty 2 -  (656-8M-20) HTD oil pump drive belts



    Sold Separately:



    ATI Y-Body Damper - ($380 to $420)

    • Qty 1 - (ATI917289) - ATI Damper, Corvette Y-Body 10% underdriven O.D. with 28 Tooth HTD oil pump drive pulley

    OR

    • Qty 1 - (ATI917304) - ATI Damper, Corvette Y-Body OEM O.D. with 28 Tooth HTD oil pump drive pulley



    Engine Block Fitting - $65

    Qty 1 - (26-02-0600) Dailey Engineering LS oil feed fitting for OEM engine block, 16mm thread to -10 flare





  • Additional Items Needed

    • Oil tank with dual scavenge returns
    • Oil tank breather
    • Scavenge filter, 75-micron
    • Remote oil filter
    • Vacuum regulator or Breather for the valve cover
    • Fitting screen for vacuum scavenge section, 730-micron for -12
    • Plumbing
    • OEM style pan gasket
    • Pan rail hardware
$4,550.00Price
