DSS Tank Fitting Kits

DSS Tank Fitting Kits

Dry Sump Solutions Tank Fitting Kits take the hassle out of selecting the proper oil tank fittings for your application. Each kit uses Dailey Engineering high flow A/N fittings that reduce the chance of pump cavitation and allow for maximum crankcase vacuum.



Kits TFK01-TFK03 are to be used with Peterson Fluid Systems dual return oil tanks with -12 female A/N fittings such as PN# 08-0006 and 08-0008.



Kits TFK04-TFK08 are to be used with Peterson Fluid Systems Drag oil tank (PN# 08-0784-DAILEY) with dual return -16 female A/N fittings and dual -12 female A/N vents.



All kits are to be used with a dual -12 female A/N oil tank breather can such as Peterson Fluid Systems PN# 08-0400





  • KITS

    TFK01- This kit will be used for systems that have one scavenge return from the oil pump back to the oil tank.

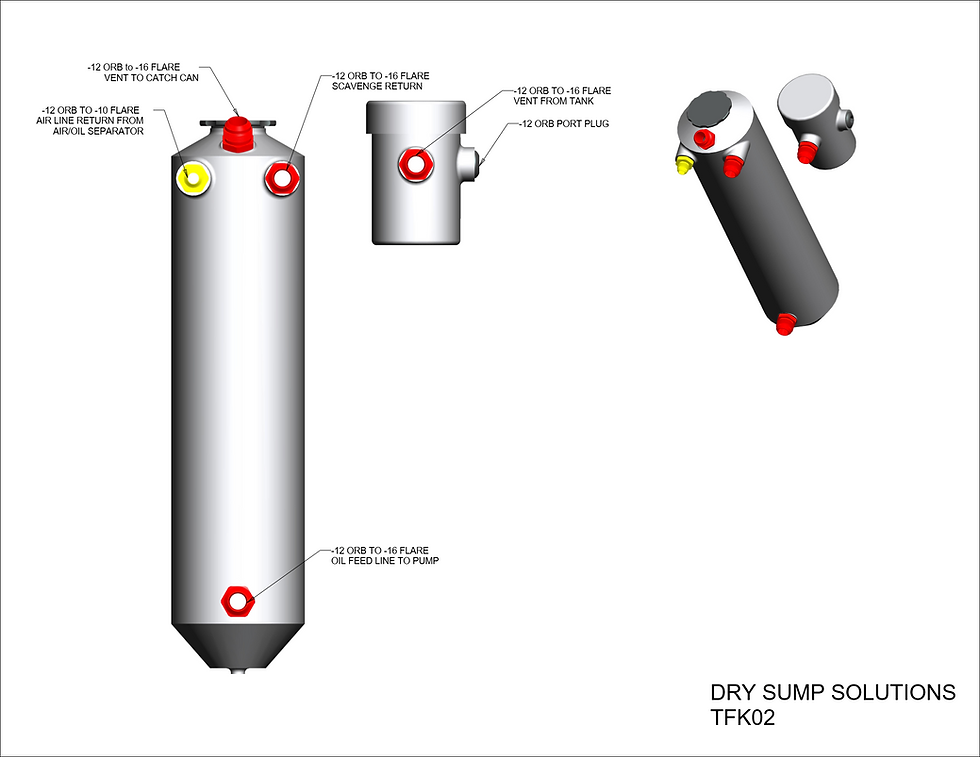

    TFK02-  This kit will be used for systems that have an Air/Oil Separator on the oil pump requiring an oil and air return line to the oil tank.

    TFK03- This kit will be used for systems that have dual scavenge returns from the pump to the oil tank.



    Fitting TFK01 TFK02 TFK03
    -12to-16Flare 4 4 5
    -12to-10Flare 0 1 0
    -12Port 2 1 1



    TFK04- This kit will be used for systems that have one -16 scavenge return from the oil pump back to the oil tank.

    TFK05- This kit will be used for systems that have dual -16 scavenge returns from the oil pump back to the oil tank.

    TFK06- This kit will be used for high blow by applications that have dual -16 scavenge returns from the oil pump back to the oil tank and dual -12 oil tank vents.

    TFK07- This kit will be used for systems that have one -20 scavenge return from the oil pump back to the oil tank.

    TFK08- This kit will be used for high blow by applications that have one -20 scavenge return from the oil pump back to the oil tank and dual -12 oil tank vents.



    Fittings TFK04 TFK05 TFK06 TFK07 TFK08
    -12to-16Flare 3 3 5 3 5
    -16to-16Flare 1 2 2 0 0
    -16to-20Flare 0 0 0 1 1
    -12Port 2 2 0 2 0
    -16Port 1 0 0 1 1



PriceFrom $81.00
